SDEC Shanghai Engine AC Generator Set 480KW / 600KVA silent type
SDEC Series diesel Gen-Sets Introduce
SDEC Series diesel generator set adopt the H, D, E, G, W series diesel engine, which are made by Shanghai Diesel Engine Co.,Ltd, and the famous alternators. The genset has the characteristics of high precision, high dynamic performance, low voltage waveform distortion, high efficiency, reliable operation, long service life and good economic performance.
The genset is equipped with a maintenance-free battery start system. Users only need to inject oil and coolant. After turning on the negative switch, the users can start the unit and output the power, which greatly improves the convenience of the use.
Specification of SDEC Diesel Generator 500kw:
| Manufacturer : Nanjing Stone Power Co., LTD | Model: SS600E5 |
| Rated output power : 480 KW | Steady-state voltage regulation rate : ≤±1% |
| Max output power : 500 KW | Voltage fluctuation rate : ≤±0.5% |
| Phase: Three phase | Transient voltage regulation rate :＋20～－15% |
| Power factor : COSΦ=0.8 | Voltage stable time: ≤ 1S |
| Output voltage: 400/230 V | Steady-state frequency regulation rate : ≤±1% |
| Output current: 864 A | Frequency fluctuation rate: ≤ ±0.5% |
| Rated frequency : 50 HZ | Transient frequency regulation rate: ≤ +10~-7% |
| Rated speed : 1500 RPM | Frequency stable time:≤ 3S |
| Size(L×W×H): 3500*1500*2100 mm | Weight: 3850 kg |
| |
| Manufacturer : Shanghai Diesel Engine Co., Ltd. (SDEC) | Model : SG27G755D2 |
| Power: 555 KW | Rated speed : 1500 RPM |
| Start mode: DC24V Electric start | Cooling way: Water cooled |
| Cylinder arrangement: 12 cylinders in "V" type | Bore*stroke: 135*155 mm |
| Displacement: 26.8 L | Aspiration : Air-Air inter-cooler |
| Compression ratio : 18:1 | Fuel consumption rate : 208 g/kw.h |
| Lube Oil capacity: 65 L | Fuel injection mode: Direct Injection |
| Speed governor: Electronic controlled | Fuel type: (standard)0# Light oil |
| |
| Manufacturer : Stamford/Marathon/Wattek | Model: HCI 544E |
| Power: 480 KW | Rated voltage: 400/230 V |
| Type: A.C. Synchronous | Voltage regulation mode: Auto |
| Protection grade : IP23 | Insulation grade : H |
| Rated speed: 1500 rpm | Power factor: COSΦ=0.8(Lag) |
| Connection way: 3 phases,4 wire, Y-connection | Bearing number: 1 |
| Alternator efficiency: 93% | Excitation mode: brush-less self-excitation |
Diesel Engine
Model: SC27G755D2
Brand: SDEC
Original: Shanghai
Powerful diesel egine, four cycle, water-cooling

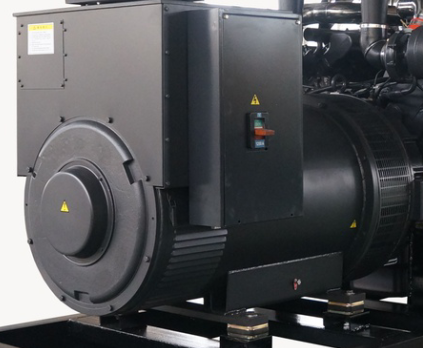

Alternator
Model: HCI544E
Brand: Stamford
A.C synchronous, brush-less alternator
- Trade Terms: EXW,FOB.CFR,CIF,DDU etc.
- Payment Term: 30%TT as deposit,70%TT before Shipment.
- Delivery Time: 3-15 working days.
- Packing: Plywood Pallet,Plywood Case,Plastic Film.
- Shipping Port: Shanghai,Ningbo,Qingdao etc.
- Our company attaches great importance to after-sales service, the user to establish a computer archive, tracking services, regular inspection services.
- For each category generator provided in our company, all could enjoy 12 months or 1000 working hours maintenance.
- For helping customers master the operation,we in particular provide free site and training courses of different types of generators.
-
- Nanjing Stone Power Co., Ltd is a manufacturer who focuses on generator sets (on-site, house, commercial, removable) and related products from 10KVA-2200KVA (6.4KW-1600KW), Stone Power brand Gen-set powered by world famous engines Cummins (20kw-1200kw), Perkins (7.2kw-1800kw), Deutz (24kw-1600kw), Isuzu (20kw-64kw) and YTO (8KW-400KW), diesel engines coupled to Newage Stamford alternators, Marathon Alternators Mecc alte alternators or Stone Power AC alternator, with REASONABLE PRICE and the HIGH QUALITY. The Gen-set categories include 50HZ,60HZ,1 phase, 3 phases, open, soundproof and removable types. Stone POWER is the generators manufacturer to combine the western concept with china productivity. So we believe that Stone POWER could support you to become most competitive. Welcome your inquiry!
-
